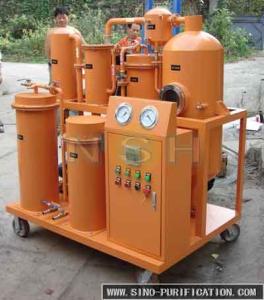

12000L/H Closed Type Dehydration Degassing Vacuum Lubrication Oil Purifier
Purifier for Transformer Oil/Insulation Oil:
VFD series-- Double-Stage Vacuum Transformer Oil Purifier Machine
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Optional Auxiliary Equipment:
1. Breakdown voltage tester(oil tester)
2. SINO-NSH digital Hygrometer(weater content tester)
3. SINO-NSH digital flow meter
4. SINO-NSH particle count meter
5. Foam level detector
6. SINO-NSH-PLC with touch screen and data monitor
7. SINO-NSH dissolved gas meter
8. SINO-NSH digital dielectic dissipation factor tester
Vacuum Lubrication Oil Purifier Description:
1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifuncational purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and fee water,and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency,it has a strong anti-emulsifying capability, which could separate the large amount of water from oil and trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirements of transformer manufacturers and service companies.
Vacuum Lubrication Oil Purifier Technical Parameters:
| Parameter | Value |
| LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 |
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
| Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 |
| Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
| Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≤6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Order Process:
Choose type→Sign the contract→Customization→The test→Delivery→Collect the goods
FAQ:
1.1. Are you a trading company or manufacturer?
Manufacturer.
2. Do you accept custom service?
Yes!
3. Do you offer free technical training?
Yes!
4. What's your Delivery Time?
20~30 days.
5. What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6. Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.
Product Tags:
|
|
Degassing Dehydration Lubrication Oil Purifier 12000L/H Closed Type Images
|
