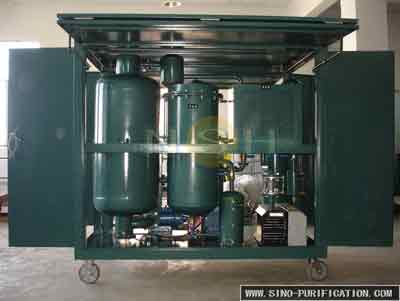

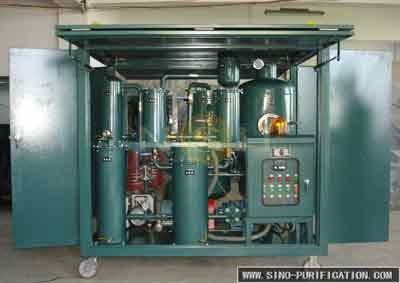

Enclosed 126kw With Oil Teste Dehydration Vacuum Lubricating Oil Purifier
Where do Contaminants Come from in Oil?
1. External environmental sources
2. Air vent systems that may let in particles and dirt.
3. Internal environmental sources
4. Oxidation that forms acids, resins, etc.
5. Rust and corrosion
6. Leaking coolers
126kw Vacuum Lubricating Oil Purifier Advantages:
1. Dehydration demulsification efficiency is high
2. Strong filtration and purification performance
3. Good working stability
4. multi-usage
126kw Vacuum Lubricating Oil Purifier Features:
- Hole used -friendly design.
- Four main security and protecting system to ensure safe operation.
- Adopting delamination gradual-close filtering technology.
- Online working.
- High efficiency, low noise
- Environmentally friendly design.
- Low maintenance cost
Corollary Equipment-VR Vacuum Pump Set:
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable | |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
126kw Vacuum Lubricating Oil PurifierTechnical Parameters:
| Parameter | Value |
| LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 |
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
| Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 |
| Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
| Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≤6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Other Optional for Transformer Oil/Insulation Oil:
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
VFD-R series-- Double-Stage Vacuum Black Insulation Oil Regeneration Machine
VF series-- Single-Stage Vacuum Transformer oil Filtration machine.
Tailorded Vacuum Oil Solutions:
Sino-NSH Plants could implement accessible and reliable solutions for unique request and practical usage. It could be special demension request, special structure adoption, unusual using condition demand, or exact performance requirement. Sino-NSH professional technical group and crafted skill man ensure every Sino-NSH system is custom engineering and design that exceed your expectation.
TF Series Turbine Oil Purifier:
| NSH-TF-E Explosion-proof Turbine Oil Purifier |
Sino-NSH-TF-E is explosion-proof type designed for flammable and combustible working conditions in power plant, petroleum, petrochemical, chemistry, metallurgy and other industries.
NSH-TF-E adds an explosion-proof system compare to NSH-TF, using comprehensive explosion-proof technology. The components such as heating system, electric control system, motor and solenoid valves etc are well-selected explosion-proof type adapt to different danger level. |
| NSH-TF-A Automatic Control Vacuum Turbine Oil Purifier |
Sino-NSH-TF-A isfully automatic unit developed based on NSH-TF, realize the intelligence of the machine and simplify the operation.
Sino-NSH-TF-A utilizes the brand Programmable Logic Controller(P.L.C) and a series of instrumentations, alarms and interlocks to provide a fully automatic operation. Manual control of various functions is provided as required. Several Pilots Lights are provided to indicate operational atatus of key components and alarm conditions.
With full scale of on-line testers and detectors as option, Sino-NSH-TF-A could implements accessible and reliable solutions for unique request and pratical usage. |
PS: we accept customization, welcome to inquiry!!
