Dehydrated Transformer Vacuum Oil Purifier Device Turbine Oil Demulsifier Purifier 3000LPH
Sino-NSH-VFD is a dehydration and degassing unit with thermal and double-stage vacuum processing.
Sino-NSH-VFD is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment. It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.
Sino-NSH-VFD combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating efficient thermal and double-stage vacuum, the breakdown voltage is highly improved, which can be increased from 25kV to over 70kV.
Sino-NSH-VFD maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.
Technical specification
| Parameter | Value |
| VFD-30 | VFD-50 | VFD-75 | VFD-100 | VFD-150 | VFD-200 | VFD-300 |
| Capacity,liters/hours | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 |
| Heating Power,kW | 24 | 30 | 48 | 60 | 90 | 120 | 150 |
| Total Power,kW | 29 | 36 | 56 | 69 | 100 | 132 | 170 |
| Power supply | Fully customizable |
| Inlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 |
| Outlet Diameter,mm | 25 | 32 | 32 | 40 | 40 | 50 | 65 |
Dimensions
(without trailer) | Length,mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| Width,mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| Height,mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer),kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water content,ppm | ≤ 5 |
| Dielectric strength,kv | ≥75 |
| Filtration fineness,um | ≤ 5(or 1-5 as needed) |
| Gas content,% | ≤ 0.1 |
Available style:

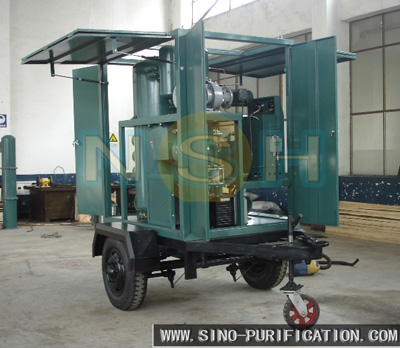

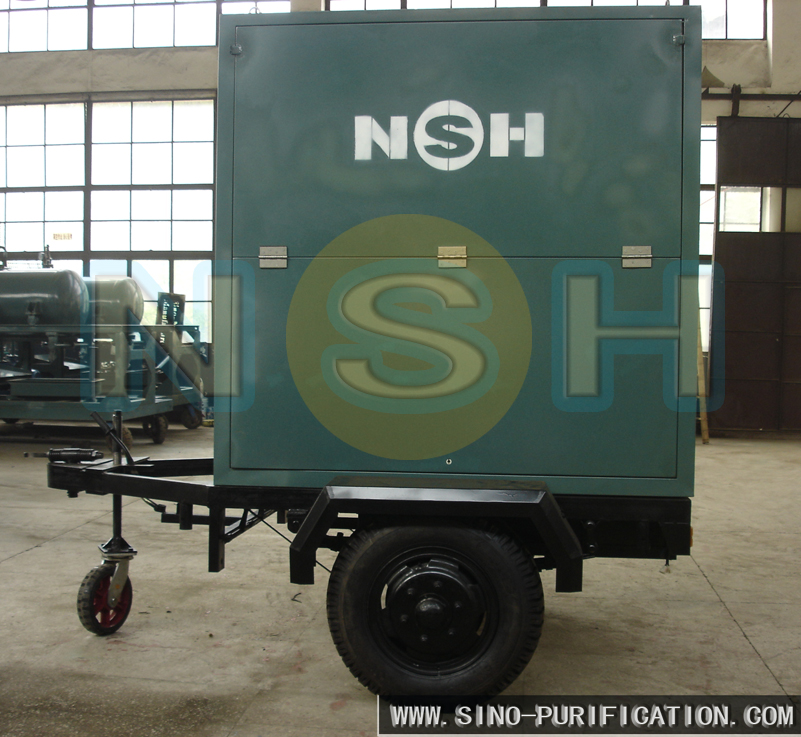

1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.

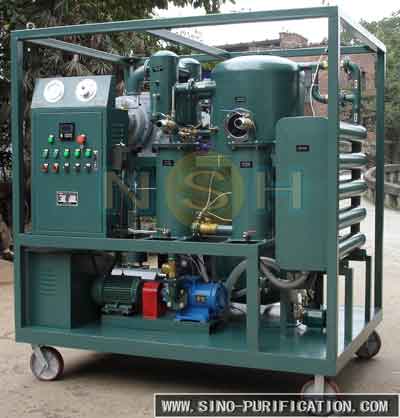

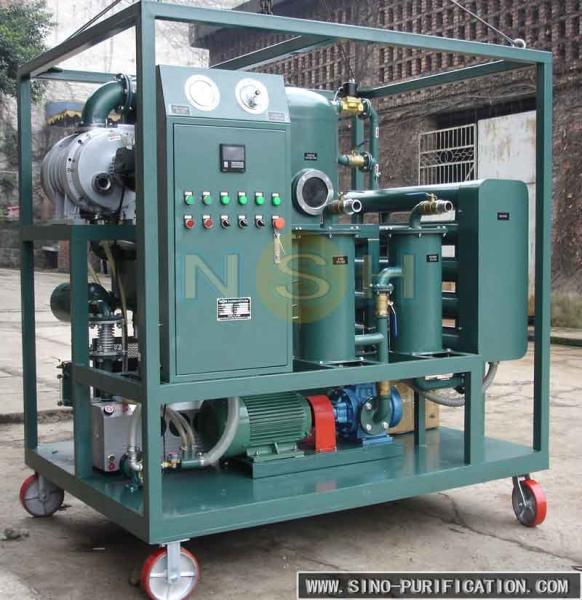

Products pucture:
About Sino-NSH:
Sino-NSH Oil Purifier Manufacture Co.,Ltd is a leading manufacture of oil purification and regeneration systems worldwide.
NSH products are extensively used in the field of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. to meet different demands of customers. And tailored solutions are provided for special applications.
Service & Support: NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making high quality purification equipment and become the main manufacture base of purification machine in China.
Factory and Package:
