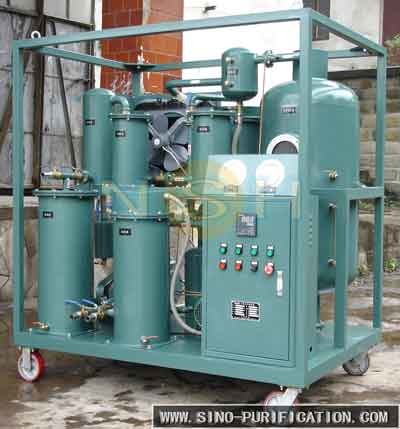

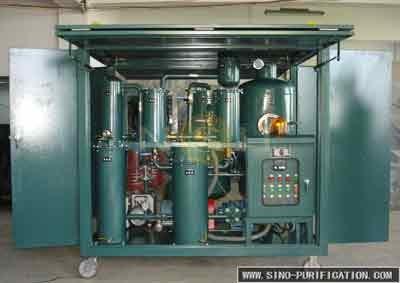

9000L/H Explosion-Proof Vacuum Lubrication Oil Purifier Oil Purifier
Product introduction:
LV series of products are specially designed to deal with the influent, emulsification and particle pollution caused by industrial oil such as mechanical oil, hydraulic transmission oil, hydraulic oil, compressor oil, refrigerated oil, heat treatment oil, diesel oil and gasoline oil during production, transportation and use. Ensure the normal operation of hydraulic system, power system and lubrication system. Therefore, the selection of lubricating oil series vacuum oil filter is the inevitable trend of purification equipment oil in industrial and mining enterprises, has significant economic benefits, is the best choice for energy saving, consumption reduction and equipment maintenance.
Product performance:
1. dehydration and degassing
2. movable castors
3. various precision filters
4. low power consumption
5. processing of any mineral oil
Product advantages:
1. Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is a multifunctional purifier which can treat various kinds of lubricant oils.
2. Sino-NSH-LV is mainly used to remove dissolved and free water, and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency. It has a strong anti-emulsifying capability, which could separate the large amount of water from oil and the trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
3. Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.
Product parameters:
| Item | Unit | LV-30 | LV-50 | LV-75 | LV-100 | LV-150 | LV-200 | LV-300 |
| Flow Rate | L/H | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | 18000 |
| Vacuum Range | Mpa | －0.065 ～ －0.096 |
| Working Pressure | Mpa | ≤ 0.4 |
| Clearness | NAS | ≤ 6 |
| Temperature Range | ℃ | 40 ～ 80 |
| Water Content | PPM | ≤ 100 |
| Impurity Size | μ m | ≤ 5 |
| Power Supply | V | 380V/50Hz(or as needed) |
| Working Noise | dB | ≤ 70 | ≤ 75 |
| Heating Power | Kw | 30 | 45 | 75 | 90 | 120 | 180 | 135 |
| Total Power | Kw | 33 | 48 | 80 | 95 | 126 | 187 | 145 |
| Pipeline Diameter | mm | DN20 | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 |
| Net Weight | Kg | 550 | 750 | 850 | 950 | 1050 | 1200 | 1250 |
| Size | length | mm | 1400 | 1500 | 1600 | 1650 | 1750 | 1850 | 2100 |
| width | mm | 1000 | 1200 | 1300 | 1300 | 1400 | 1500 | 1600 |
| high | mm | 1800 | 1850 | 1900 | 1900 | 2000 | 2050 | 2000 |
